Railroad Fasteners Nabla E Type Rail Fastening Systems Railway

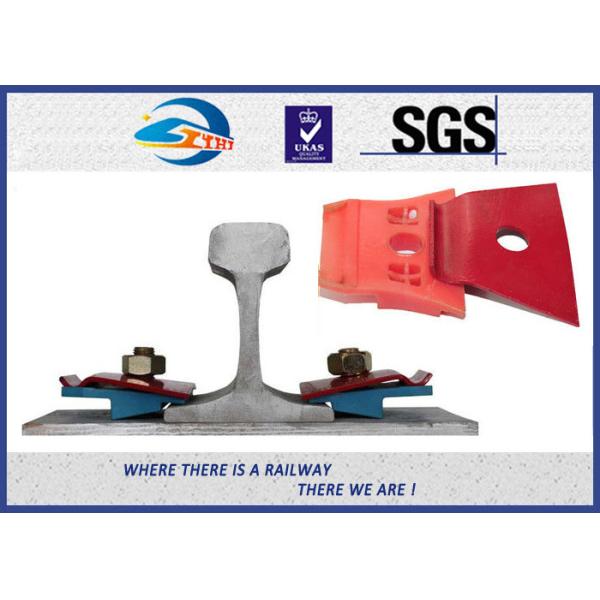

Nabla Clip Rail Fastening System
| Part name | Type | Material | Finish | Remark |
| Nabla clip | Thickness 4mm or 4.5mm | 60Si2MnA, 60Si2CrA | Plain oiled, red color painting, or the other required by customers | Hardness: 42-47HRCFatigue
life: 3 millions cycles without breaking
Standard: DIN17221, GB/T1222 |
| Insulator | UIC54, UIC60, S49 rails | Reinforced Nylon 66 (PA66) | Black, blue, yellow, green or other colors | Different designs are available. |
| Double end screw spike | UIC54, UIC60, 50kg rail, 60kg rail | Grade 5.6: 35# | Plain oiled, black oxide, galvanized, hot dip galvanized | Bending at 30 degree without crack. |
| Special spring washer | 18.25×34×78mm | ML08Al | Plain oiled, black oxide, galvanized, hot dip galvanized | For protecting the thread of the double end screw spike |
| Hex nut | As ordered | Grade 5: 35# | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN985 |
| Plain washer | As ordered | Q235 | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN125 |
Advantage:
We are a leading and reputed manufacturer of qualified railway products in China since 2013, have got the production license of China’s Railway Ministry on railway products. We supply to Thailand Railway, Indonesia Railway, Zambia Railway, American Railway etc for years. We can customize your product with ASTM, DIN, BS, JIS, AS, NF, ISO and GB standard, competitive price available.
Order Hints:
MOQ: based on your product
Delivery time:Within 30days after order confirmed
Shipment: sea freight
Payment term: T/T 30% deposit, balance before shipment; LC
Our product range:
1. Screw spike/Coach screw/Drive screw/Sleeper Screw, Dog spike/Railroad spike/Lock spike/Cut spike,etc.
2. Rail clip/ Tension clamp/ E, R, SKL clip/ DP clip/ Deenik clip
3. Swivel Bolts/ Track Bolt/ Special bolts/ U bolts/ J bolts/ Anchor bolts/ Foundation bolts/ Stud bolts/ Rod bolts/ Curved bolts/ Tunnel bolts
4. Tie plate/ Base plate / Rail plate/ Rail fixing base/ Rail Pads/ Sole plate/ Sole pad
5. Fish plate / Joint bar / Rail joint/ Splice Bar
6. Track bolt/ T bolt / Rail bolt/ Clamp bolt/ Inserted bolt/ Clip bolt/ Fish bolt/ Square bolt/ Rod bolt /Rail joint bolt
7. Clamp plate/ Rail spring clamp/ Anchor plate/ Steel clip
8. Rail Shoulder/ Rail sleeper Inserts/ Rail Anchors for rail sleepers
9. Plastic dowel / Guide plate/ Nylon insert
